6kV Surge Voltage Testers

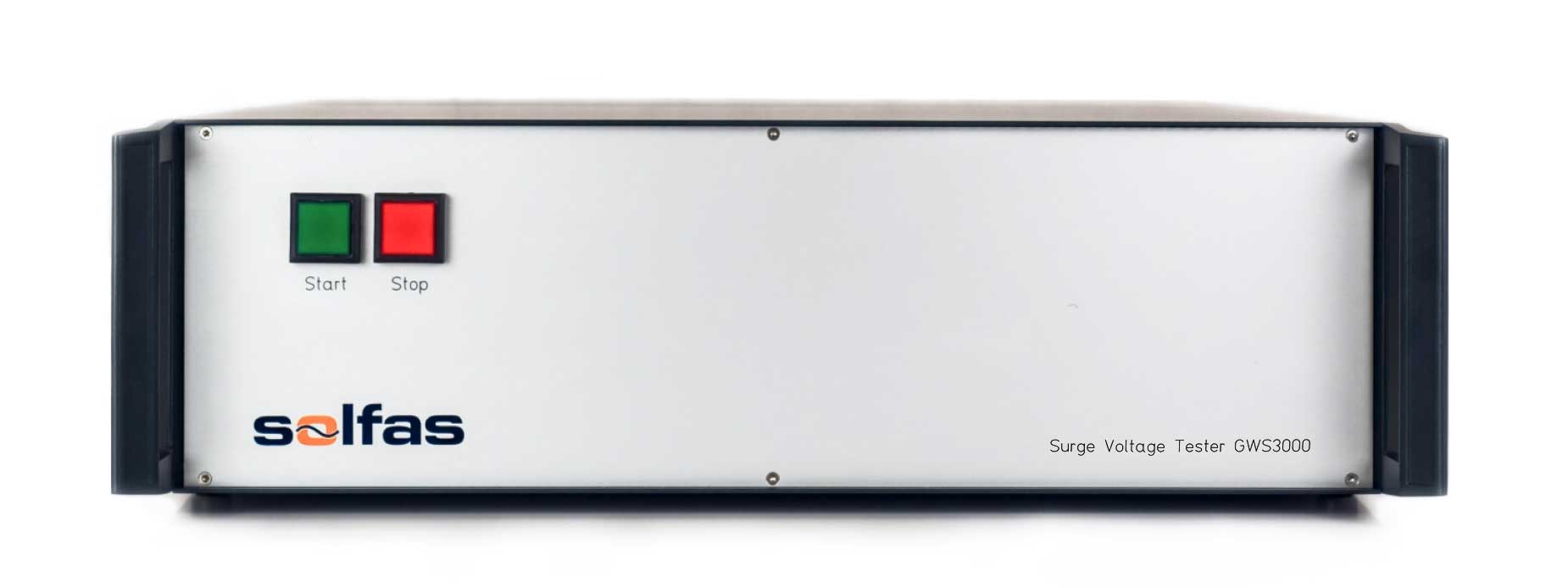

The GWS3000 Surge Voltage Tester is your ultimate solution for precise and reliable surge voltage testing. Designed for professionals, this compact yet powerful device accurately supplies up to 6kV, ensuring the safety and compliance of electrical insulation systems. Its user-friendly interface and robust construction make it ideal for both field and lab use. Featuring real-time data display, data evaluation, and advanced safety features, the GWS3000 guarantees consistent performance. Whether you’re diagnosing winding faults or verifying insulation system performance, trust the GWS3000 to deliver unparalleled accuracy and ease of use in surge voltage testing.
6kV Surge Voltage Testers
Enhance your testing process with the GWS3000’s user-friendly interface, offering seamless operation and accurate control.
Perform surge tests on stators, effortlessly configure voltage and repetition parameters, and view surge voltage plots for comparison
with reference data or other phases. Additionally, calculate coil data and check for limits to ensure optimal performance.
Features
Elevating Surge Voltage Testing with Advanced Features for Precision and Efficiency
3kV or 6kV Output Voltage
GWS3000-6 Output voltage 0.15…6kV
GWS3000-3 Output Voltage 0.3…3kV
Precision and Accuracy
High accuracy measurements with 12Bit resolution
Complete Remote Control
Full remote control with SCPI commands
User-friendly Software
High Surge Energy
Up to 1800mJ Surge Energy
100nF Surge Capacitance
High Repition Frequency
Repition Frequency up to 10Hz
Full Safety Features
Safety features for systems according to EN50191
Short Rise Time
For PD measurements according to IEC 60034-18-41 and IEC/TS 61934.
Versatile Connectivity Options
USB 2.0 and 10/100 Mbit Ethernet interfaces
Compact Case for Rack Mount
Size 449x133x375mm (19” 3U), weight 8.5kg
Key Benefits
for Advanced Surge Voltage Testing
Technical Specifications
| Model | GWS3000-3 | GWS3000-6 |
|---|---|---|
| Voltage | 150…3000Vp | 300…6000Vp |
| Surge Energy | 450mJ | 1800mJ |
| Surge Capacitance | 100nF | |
| Impulse rise time | 200ns | |
| Impulse repetition rate | 1-10Hz | 1-5Hz |
| Monitor Output (BNC) | 1:1000 of Output Voltage | |
| Trigger Output (BNC) | Open Collector, Active Low, 5V max | |
| Voltage Measurement | Resolution 12Bit, up to 2.5MS/s Accuracy 0.5% ±0.5% of Range |
|
| Communication Interfaces | 10/100M Ethernet – RJ45 Connector USB 2.0 – Type B Connector |
|
| Safety features | Connection for external emergency stop, safety circuit and warning lamps, D-SUB15 Socket Connector |
|
| Power Supply | 85–264VAC, 47-63Hz, IEC C14 plug | |
| Dimensions (WxHxD) | 449x133x375 mm (19“ 3RU) | |
| Weight | 8.5kg | |
Applications
Unleash the potential: Versatile testing possibilities for innovation and increased reliability
Electrical motor & stator testing
Ensure optimal performance and reliability of electric motors and stator windings.
Research and development
Utilize advanced testing solutions for the development and optimization of new technologies and products.
Transformer, choke & coil testing
Verify the reliable performance and quality of a wide variety of wire-wound components, such as chokes, transformers, and coils.
Voltage Source for PD Tests
The GWS3000 can be used with appropriate PD measurement equipment such as the solfas GTU series to measure partial discharges with pulsed voltages according to IEC 60034-18-41 and IEC/TS 61934.
