Solfas Test Suite 2 – Test Steps
Discover the test steps that will improve your testing procedures
Winding Resistance
Precise winding resistance measurements with DC current.
• Temperature compensation
• Mean and symmetry calculation

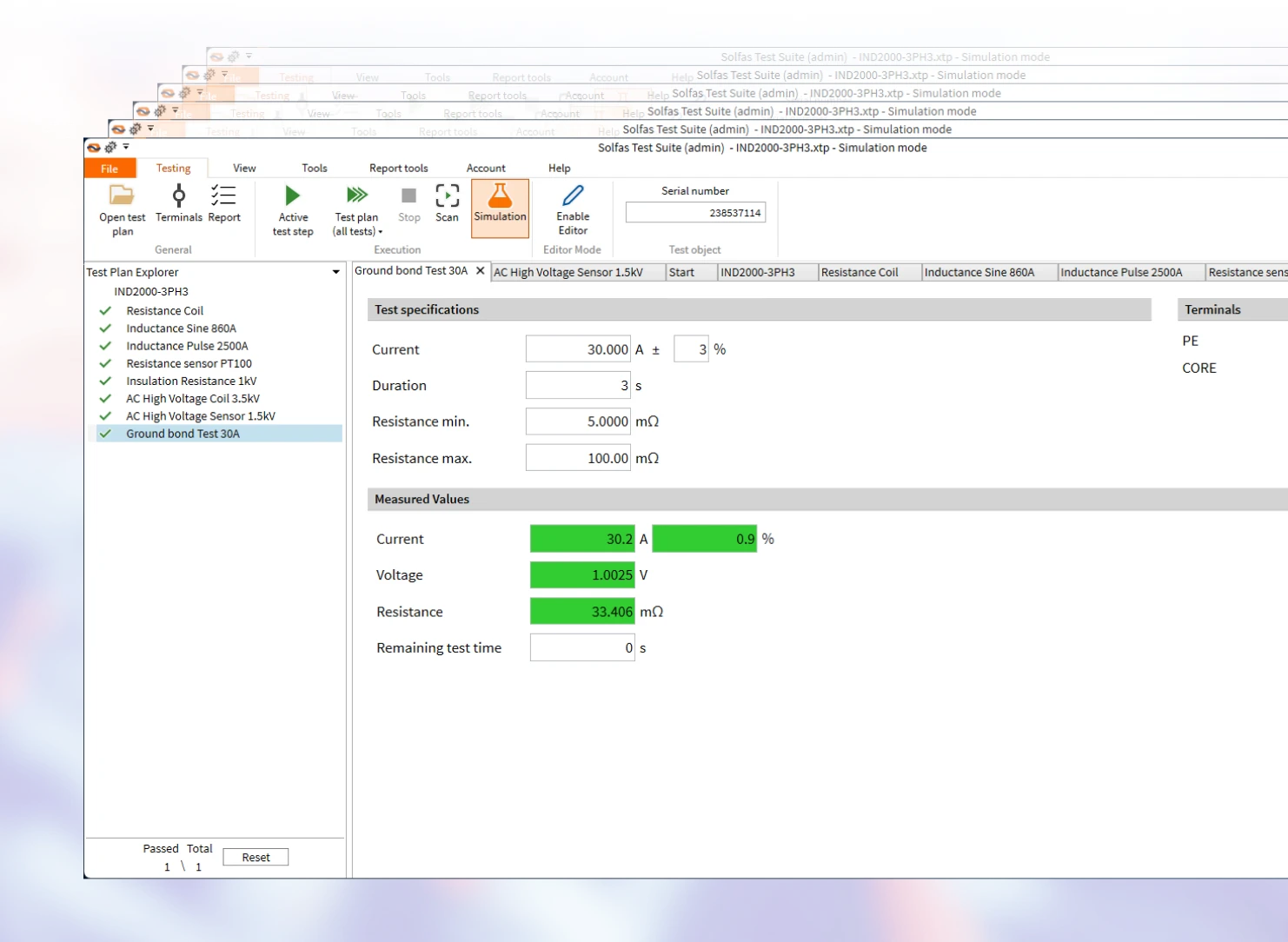

Ground Bond
The ground bond test measures the resistance of a ground connection using alternating current.
• Adjustable current
• Adjustable test time
• Resistance min and max limits
High Voltage
AC or DC High voltage safety tests.
• Adjustable voltage and current limit
• Adjustable test time
• Voltage ramps
Inductance Sine
Inductance is measured with 1-phase or 3-phase sinusoidal AC current.
• Adjustable current and frequency
• Mean and symmetry calculation
• Power loss measurement
Inductance Pulse
Inductance and saturation behavior is measured with pulsed voltage and high current.
• Adjustable peak current up to 4000A
• Inductance over current plot
• 1- and 3-phase tests
Insulation Resistance
Measures the insulation resistance with the adjusted test voltage.
• Adjustable voltage, ramp and test time
• Insulation resistance limt
Sensor Resistance
Precise measurements for temperature and other sensors.
• Sensor temperature compensation
• For PT100, NTC, KTY and others
• Comparison to ambient temperature
More Test Steps
Unlimited Possibilities for Your Test System
No Load
The no-load transformer test measures input current and losses at rated voltage and frequency
Short circuit and Impedance
Transformer short-circuit losses and impedance are measured.
Induced Over Voltage
During this test, the transformer is typically supplied with twice the rated voltage and twice or more the rated frequency for a period of 120s.
Encoder Test
Quality testing of rotary encoders on electric motors.
Resolver Test
Quality testing of resolvers on electric motors.
CAN Monitor
With this test messages of a CAN bus can be evaluated. UDS protocols are also supported.
Capitance and ESR
Measurement of capacitance and ESR values of a capacitor.
Partial Discharge
Measurement of partial discharges during tests with a sine voltage or with a pulse voltage.
Motor Power Measurement
Measurement of the voltage, the current and the power of an electric motor.
